DFM & Mold Flow Analysis
Ensuring manufacturing success through comprehensive design validation and flow simulation before tooling production
Why DFM & Mold Flow Analysis Matter
Pre-production analysis is critical to identify potential manufacturing issues, reduce costs, and ensure product quality before tooling investment
Cost Reduction
Identify and resolve design issues before tooling production, avoiding expensive mold modifications and reducing overall project costs
Time Savings
Accelerate time-to-market by eliminating trial-and-error cycles, optimizing the design upfront for efficient production
Quality Assurance
Predict and prevent defects such as warpage, sink marks, and weld lines before production begins
Process Optimization
Optimize injection parameters including fill time, pressure, and cooling time for consistent part quality
Documentation
Provide comprehensive analysis reports for stakeholder review and manufacturing process documentation
Risk Mitigation
Reduce manufacturing risks by validating design feasibility and identifying potential production challenges early
DFM Report Analysis Factors
Our comprehensive DFM analysis evaluates critical design elements to ensure manufacturability and optimal production outcomes
Draft Angle
- Minimum draft angle verification for easy part ejection
- Analysis of vertical walls and deep features
- Surface finish consideration for draft requirements
- Recommendations for optimal ejection angles
Wall Thickness
- Uniform wall thickness evaluation to prevent defects
- Identification of thick-to-thin transitions
- Sink mark and void prediction in heavy sections
- Material-specific thickness recommendations
Gate Location
- Optimal gate position for balanced filling
- Weld line positioning and strength analysis
- Gate type selection based on part geometry
- Aesthetic considerations for gate vestige location
Additional DFM Considerations
Structural Elements
- • Rib design and thickness ratio
- • Boss and standoff geometry
- • Corner radius and fillet specifications
- • Undercut identification and solutions
Manufacturing Feasibility
- • Parting line location and optimization
- • Ejector pin placement strategy
- • Tolerance analysis and capability
- • Surface finish requirements
Mold Flow Analysis Simulation
Advanced simulation software predicts potential defects and optimizes injection parameters before production

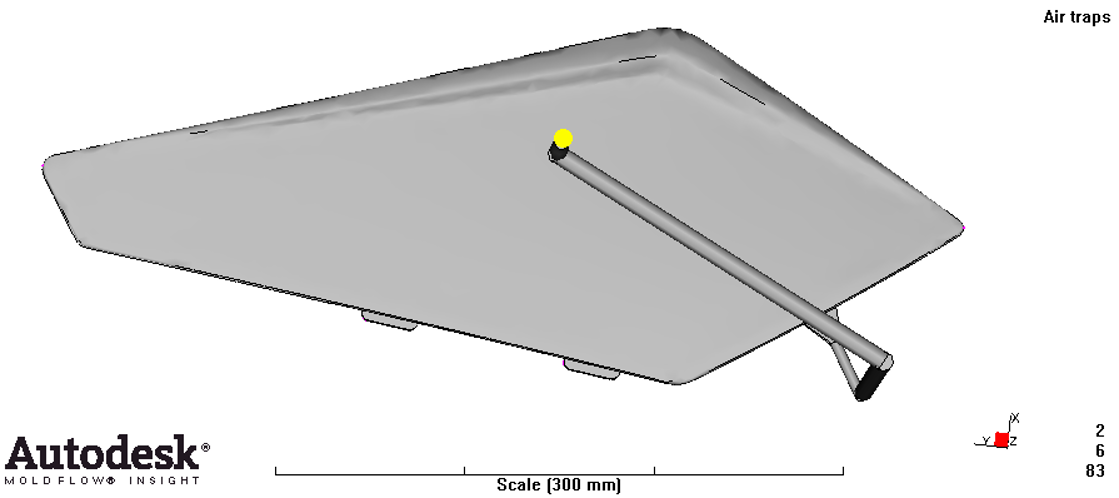

Air Trap Detection
Simulation identifies areas where air can become trapped during filling, causing surface defects and incomplete fills
- Visualization of air trap locations in cavity
- Venting strategy recommendations
- Gate location optimization to minimize trapping
- Fill pattern adjustment for air evacuation

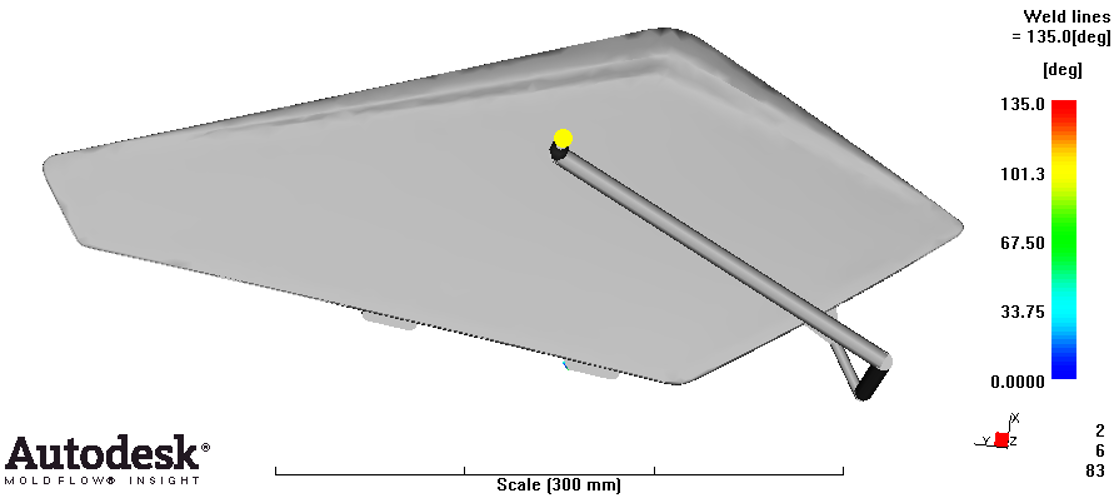

Weld Line Prediction
Identifies where separate flow fronts meet, creating potential weak points and visible lines on part surfaces
- Precise weld line location mapping
- Strength analysis at weld line junctions
- Gate position optimization to relocate lines
- Process parameter tuning for line minimization

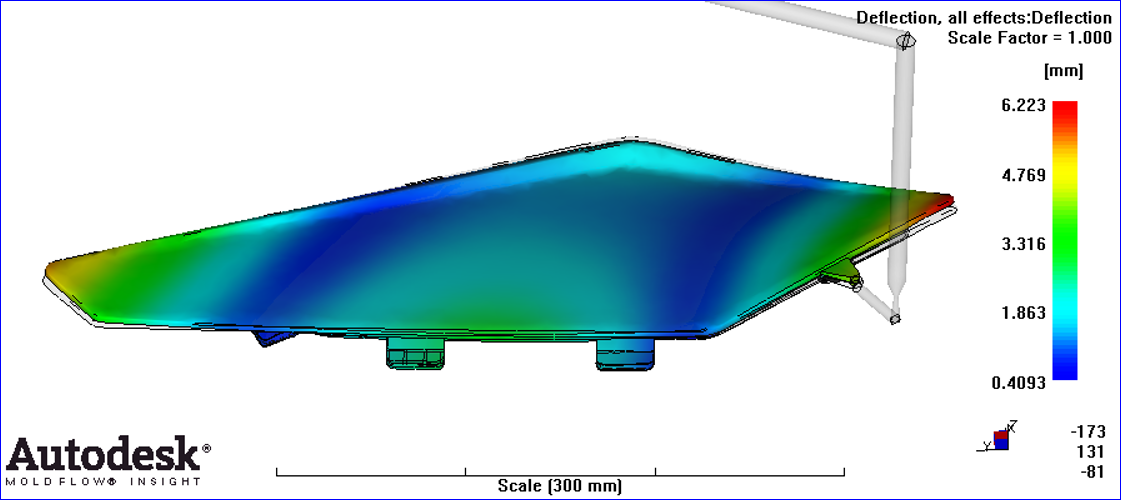

Warpage Deformation
Predicts part distortion caused by uneven cooling and material shrinkage, ensuring dimensional stability
- 3D warpage visualization with magnitude scale
- Cooling system optimization for uniform temperature
- Wall thickness adjustment recommendations
- Packing pressure and time optimization
Fill Time Analysis
Optimizes injection speed and pressure to ensure complete cavity filling without defects
Cooling Analysis
Evaluates cooling channel efficiency and cycle time optimization for productivity
Sink Mark Prediction
Identifies areas prone to surface depression in thick sections and ribs
Fiber Orientation
Analyzes reinforcement fiber alignment for glass or carbon filled materials
Our Analysis Process
A systematic approach to ensure comprehensive design validation and optimization
Design Review
Initial evaluation of 3D CAD model and design specifications
DFM Analysis
Comprehensive manufacturability assessment and recommendations
Flow Simulation
Advanced mold flow analysis with defect prediction
Report Delivery
Detailed documentation with optimization recommendations
Ready to Optimize Your Design?
Contact us today for comprehensive DFM and mold flow analysis services
